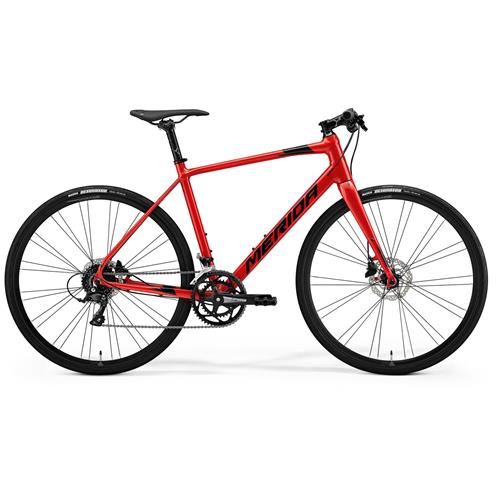

MERIDA 21 SPEEDER 200 - GOLDEN RED (BLACK)
sku: MEFB2178033
Regular price
$1,299.00
| 01. FRAME | SPEEDER LITE II; MAT aluminium; 700C WHS; 100x9/135x9 AST; BSA BBR |
| 02. SIZES | XS-S-SM-ML-L-XL |
| 03. FORK | MERIDA SPEEDER CF2; Tapered; MAT carbon |
| 04. GEARS | 2 X 9 |
| 05. CRANKSET | FSA Tempo; 50-34 ATC |
| 06. CRANK LENGTH | 170 mm-XS/S/SM/ML, 175 mm-L/XL |
| 07. BOTTOM BRACKET | FSA TH-7420ST, Cartridge Bearing |
| 08. CASSETTE | Shimano CS-HG200; 11-32 ATC; 9 Speed |
| 09. CHAIN | KMC M99 |
| 10. FRONT DERAILLEUR | Shimano Sora |
| 11. REAR DERAILLEUR | Shimano Sora; SS |
| 12. SHIFTERS | Shimano SL-R3000 |
| 13. BRAKE LEVERS | Shimano MT-200 |
| 14. BRAKE-FRONT | Shimano BR-MT200 |
| 15. BRAKE-REAR | Shimano BR-MT200 |
| 16. ROTORS | Shimano RT10; 160mm |
| 17. HANDLEBAR | MERIDA COMP TK; MAT aluminium; 600 Wide; Flat |
| 18. HANDLEBAR STEM | MERIDA COMP CC; MAT aluminium; 31.8 Diameter; 6 Angle |
| 19. STEM LENGTH | 80 mm-XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL |
| 20. HEAD SET | MERIDA M2341 Neck |
| 21. SEAT POST | MERIDA COMP CC; MAT aluminium; 30.9 Diameter; 12 Setback |
| 22. SADDLE | MERIDA COMP SL; V-mount |
| 23. HUB-FRONT | Joytech D471SBT-SC-CL; 100x9 WHF; 28 Spokes; centerlock |
| 24. HUB-REAR | Shimano FH-TX505; 135x9 WHR; 32 Spokes; centerlock |
| 25. AXLE-FRONT | Quick Release |
| 26. AXLE-REAR | Quick Release |
| 27. SPOKES | Black stainless |
| 28. RIMS | MERIDA COMP SL; 17 IWR; 22 HRI; MAT aluminium |
| 29. TYRES | Maxxis Detonator; 700x32C; wire |
| 30. PEDALS | PP pedal ( VPE-891 ) |
| 31. MAX RIDER WEIGHT | 120kg |
